ZIG ZAG SPRINGS | FLAT
ZIG ZAG SPRING | FLAT
Zig Zag Flat Spring

TRADE? Login or Contact Us

*Quantity Discounts:
Buy 20 + Get 15% OFF!
Buy 50 + Get 25% OFF!
Buy 100 + Get 45% OFF!
Buy 200 + Get 50% OFF!
*Discounts Applied at the Checkout

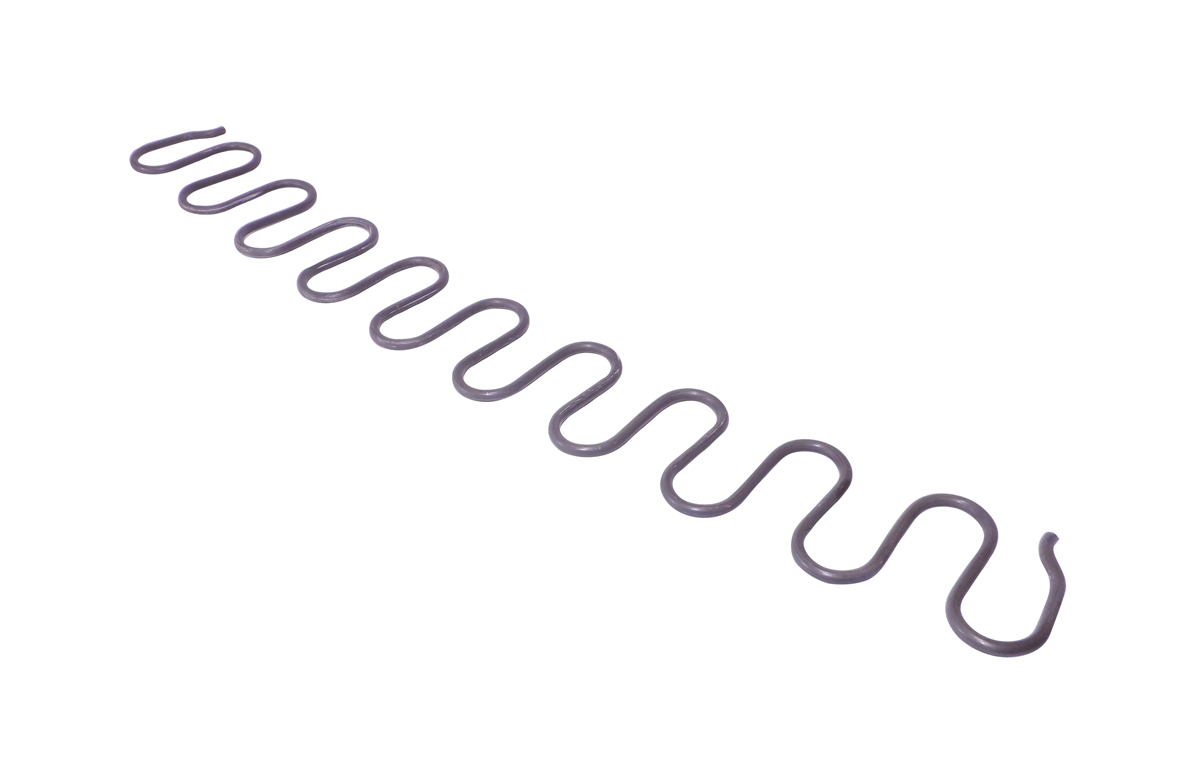

Zig Zag Springs also called Serpentine or No-Sag Springs, are a chair and sofa seat spring made from tempered wire, which is formed into evenly spaced curves or 'loops' for a fully supportive and top quality seating system. Made in our New Zealand spring factory from strong, quality, Australian Steel for long-lasting support.

*Quantity Discounts:
Buy 20 + Get 15% OFF!
Buy 50 + Get 25% OFF!
Buy 100 + Get 45% OFF!
Buy 200 + Get 50% OFF!
*Discounts Applied at the Checkout

Item# Item Name Retail Price Qty Add
SPZF99 ZIG ZAG SPRING | FLAT | 9g | 9u | Priced Per Each
$3.97 ($3.45 exc GST)
SPZF910 ZIG ZAG SPRING | FLAT | 9g | 10u | Priced Per Each
$4.52 ($3.93 exc GST)
SPZF911 ZIG ZAG SPRING | FLAT | 9g | 11u | Priced Per Each
$5.02 ($4.37 exc GST)
SPZF912 ZIG ZAG SPRING | FLAT | 9g | 12u | Priced Per Each
$5.11 ($4.44 exc GST)
SPZF913 ZIG ZAG SPRING | FLAT | 9g | 13u | Priced Per Each
$5.31 ($4.61 exc GST)
SPZF914 ZIG ZAG SPRING | FLAT | 9g | 14u | Priced Per Each
$5.60 ($4.87 exc GST)
SPZF915 ZIG ZAG SPRING | FLAT | 9g | 15u | Priced Per Each
$5.96 ($5.18 exc GST)
SPZF916 ZIG ZAG SPRING | FLAT | 9g | 16u | Priced Per Each
$6.13 ($5.33 exc GST)
SPZF917 ZIG ZAG SPRING | FLAT | 9g | 17u | Priced Per Each
$6.40 ($5.56 exc GST)
SPZF918 ZIG ZAG SPRING | FLAT | 9g | 18u | Priced Per Each
$6.62 ($5.76 exc GST)
SPZF919 ZIG ZAG SPRING | FLAT | 9g | 19u | Priced Per Each
$7.37 ($6.41 exc GST)
Check the items you wish to purchase, then click

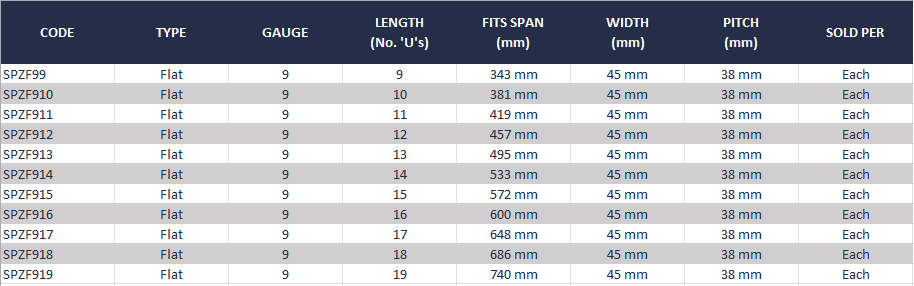

Technical Specs:




How To Instructions:
  • Span refers to the size of the furniture frame the spring will fit from end to end. It is not the length of the spring itself.
  • Gauge is the measurement of wire diameter - wire thickness
  • Length in terms of 'No. 'U's' is the number of 'U' shaped bends in the wire
  • Pitch is measured as the distance between the centre points of one 'U'.
  • If necessary, you can shorten the springs by cutting the wire. It is then advised that the end is bent or crimped to ensure the springs stay in place. This can be achieved by using a SPRING END FORMER.
  • Zig Zag Springs should be used with CONNECTING LINKS or SPRING TWINE.
  • Zig Zag Springs are fastened with single metal 'Z' CLIPS or continuous plastic CLIP STRIP
  • Zig Zag Springs are available in ARC or FLAT options depending on the height of the 'crown' required and the overall desired appearance.
  • ALSO Available: ARC springs (click here to view) are available in bundles of 5 or more individual springs or 40m continuous rolls in 9g (3.658mm), 10g (3.251mm) and 12g (2.642mm).
