ZIG ZAG SPRINGS | ARC | Priced Per Each
ZIG ZAG SPRING | ARC
Zig Zag Spring | Arc

TRADE PRICES? Login or Contact Us

*Quantity Discounts:
Buy 20 + Get 15% OFF!
Buy 50 + Get 25% OFF!
Buy 100 + Get 45% OFF!
Buy 200 + Get 50% OFF!
Buy 400 + Get 55% OFF!
*Discounts Applied at the Checkout
Zig-Zag Springs also called Serpentine or No-Sag Springs. These are chair, sofa and couch seat and back springs formed from long-lasting Australian tempered wire, which is then formed into evenly spaced curves or 'loops' for a fully supportive and top quality seating system. Made in Our New Zealand Factory using quality Australian Steel. Select from a full range of sizes in the table at the bottom of this page - tick "Add" next to the required size, followed by the "Add to Cart" button in the bottom right corner of the table.

*Quantity Discounts:
Buy 20 + Get 15% OFF!
Buy 50 + Get 25% OFF!
Buy 100 + Get 45% OFF!
Buy 200 + Get 50% OFF!
Buy 400 + Get 55% OFF!
*Discounts Applied at the Checkout

Item# Item Name Retail Price Qty Add
SPZA910 ZIG ZAG SPRING | ARC | 9g | 10u | Priced Per Each
$4.51 ($3.93 exc GST)
SPZA911 ZIG ZAG SPRING | ARC | 9g | 11u | Priced Per Each
$5.07 ($4.41 exc GST)
SPZA91112 ZIG ZAG SPRING | ARC | 9g | 11 1/2u | Priced Per Each
$5.22 ($4.54 exc GST)
SPZA912 ZIG ZAG SPRING | ARC | 9g | 12u | Priced Per Each
$5.22 ($4.54 exc GST)
SPZA91212 ZIG ZAG SPRING | ARC | 9g | 12 1/2u | Priced Per Each
$4.78 ($4.16 exc GST)
SPZA913 ZIG ZAG SPRING | ARC | 9g | 13u | Priced Per Each
$5.33 ($4.63 exc GST)
SPZA914 ZIG ZAG SPRING | ARC | 9g | 14u | Priced Per Eac
$5.62 ($4.89 exc GST)
SPZA915 ZIG ZAG SPRING | ARC | 9g | 15u | Priced Per Each
$6.00 ($5.22 exc GST)
SPZA916 ZIG ZAG SPRING | ARC | 9g | 16u | Priced Per Each
$6.16 ($5.36 exc GST)
SPZA916B ZIG ZAG SPRING | ARC | 9g | 16u (BENT) | Priced Per Each
$6.16 ($5.36 exc GST)
SPZA917 ZIG ZAG SPRING | ARC | 9g | 17u | Priced Per Each
$6.44 ($5.60 exc GST)
SPZA918 ZIG ZAG SPRING | ARC | 9g | 18u | Priced Per Each
$6.74 ($5.86 exc GST)
SPZA919 ZIG ZAG SPRING | ARC | 9g | 19u | Priced Per Each
$7.58 ($6.59 exc GST)
SPZA1010 ZIG ZAG SPRING | ARC | 10g | 10u | Priced Per Each
$4.37 ($3.80 exc GST)
SPZA1011 ZIG ZAG SPRING | ARC | 10g | 11u | Priced Per Each
$4.58 ($3.98 exc GST)
SPZA1012 ZIG ZAG SPRING | ARC | 10g | 12u | Priced Per Each
$4.69 ($4.08 exc GST)
SPZA1013 ZIG ZAG SPRING | ARC | 10g | 13u | Priced Per Each
$4.70 ($4.09 exc GST)
SPZA1014 ZIG ZAG SPRING | ARC | 10g | 14u | Priced Per Each
$4.72 ($4.10 exc GST)
SPZA1015 ZIG ZAG SPRING | ARC | 10g | 15u | Priced Per Each
$4.74 ($4.12 exc GST)
SPZA129 ZIG ZAG SPRING | ARC | 12g | 9u | Priced Per Each
$3.67 ($3.20 exc GST)
SPZA1210 ZIG ZAG SPRING | ARC | 12g | 10u | Priced Per Each
$3.83 ($3.33 exc GST)
SPZA1211 ZIG ZAG SPRING | ARC | 12g | 11u | Priced Per Each
$4.15 ($3.61 exc GST)
SPZA1212 ZIG ZAG SPRING | ARC | 12g | 12u | Priced Per Each
$4.47 ($3.89 exc GST)
SPZA1213 ZIG ZAG SPRING | ARC | 12g | 13u | Priced Per Each
$4.53 ($3.94 exc GST)
SPZA1214 ZIG ZAG SPRING | ARC | 12g | 14u | Priced Per Each
$4.58 ($3.98 exc GST)
SPZA1215 ZIG ZAG SPRING | ARC | 12g | 15u | Priced Per Each
$4.71 ($4.10 exc GST)
SPZA1216 ZIG ZAG SPRING | ARC | 12g | 16u | Priced Per Each
$4.85 ($4.21 exc GST)
SPZA1217 ZIG ZAG SPRING | ARC | 12g | 17u | Priced Per Each
$5.11 ($4.45 exc GST)
SPZR9 ZIG ZAG SPRING | ARC | 9g | 40m ROLL
$195.52 ($170.02 exc GST)
SPZR10 ZIG ZAG SPRING | ARC | 10g | 40m ROLL
$171.67 ($149.28 exc GST)
SPZR12 ZIG ZAG SPRING | ARC | 12g | 40m ROLL
$160.70 ($139.74 exc GST)
Check the items you wish to purchase, then click

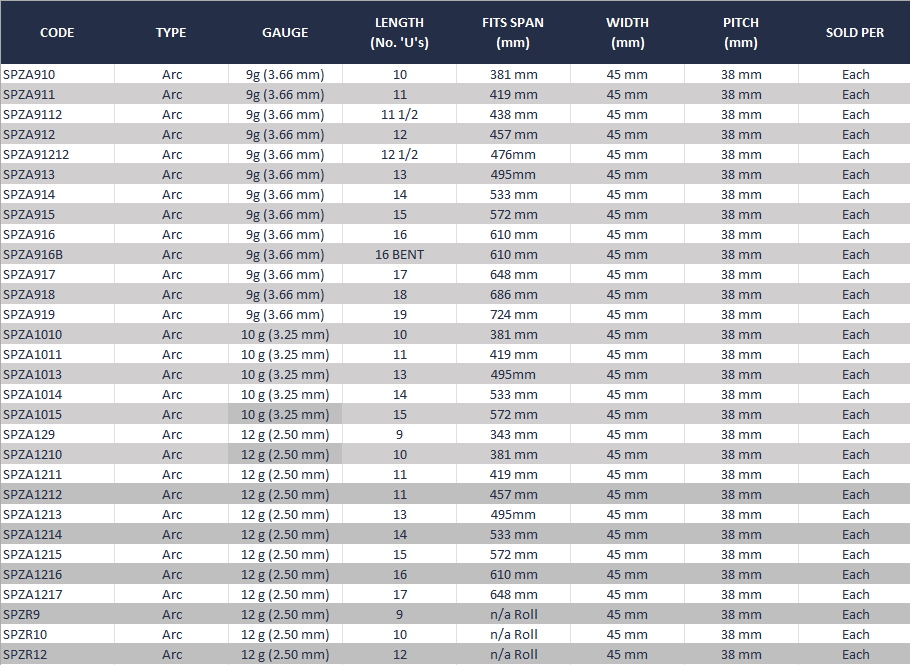

Technical Specs:







How To Instructions:
  • Span refers to the size of the furniture frame the spring will fit from end to end. It is not the length of the spring itself.
  • Gauge is the measurement of wire diameter - wire thickness
  • Length in terms of 'No. 'U's' is the number of 'U' shaped bends in the wire
  • Pitch is measured as the distance between the centre points of one 'U'.
  • If necessary, you can shorten the springs by cutting the wire. It is then advised that the end is bent or crimped to ensure that the springs stay in place. This can be achieved by using a SPRING END FORMER.
  • Zig Zag Springs should be used with CONNECTING LINKS or SPRING TWINE.
  • Zig Zag Springs are fastened with single metal 'Z' CLIPS or continuous plastic CLIP STRIP
  • Zig Zag Springs are available in ARC or FLAT options depending on the height of 'crown' required and the overall desired appearance.
  • ALSO Available: Flat springs (click here to view) are available in bundles of 5 or more individual springs in 9g (3.658mm), 10g (3.251mm) and 12g (2.642mm).
  • Quantity Discounts and Trade Pricing Available.
