Bed Frame Connecting Bolt Sets | JCB Connector Bolts
Bed Frame Connecting Bolt Set

Wholesale Account? Login or Contact Us

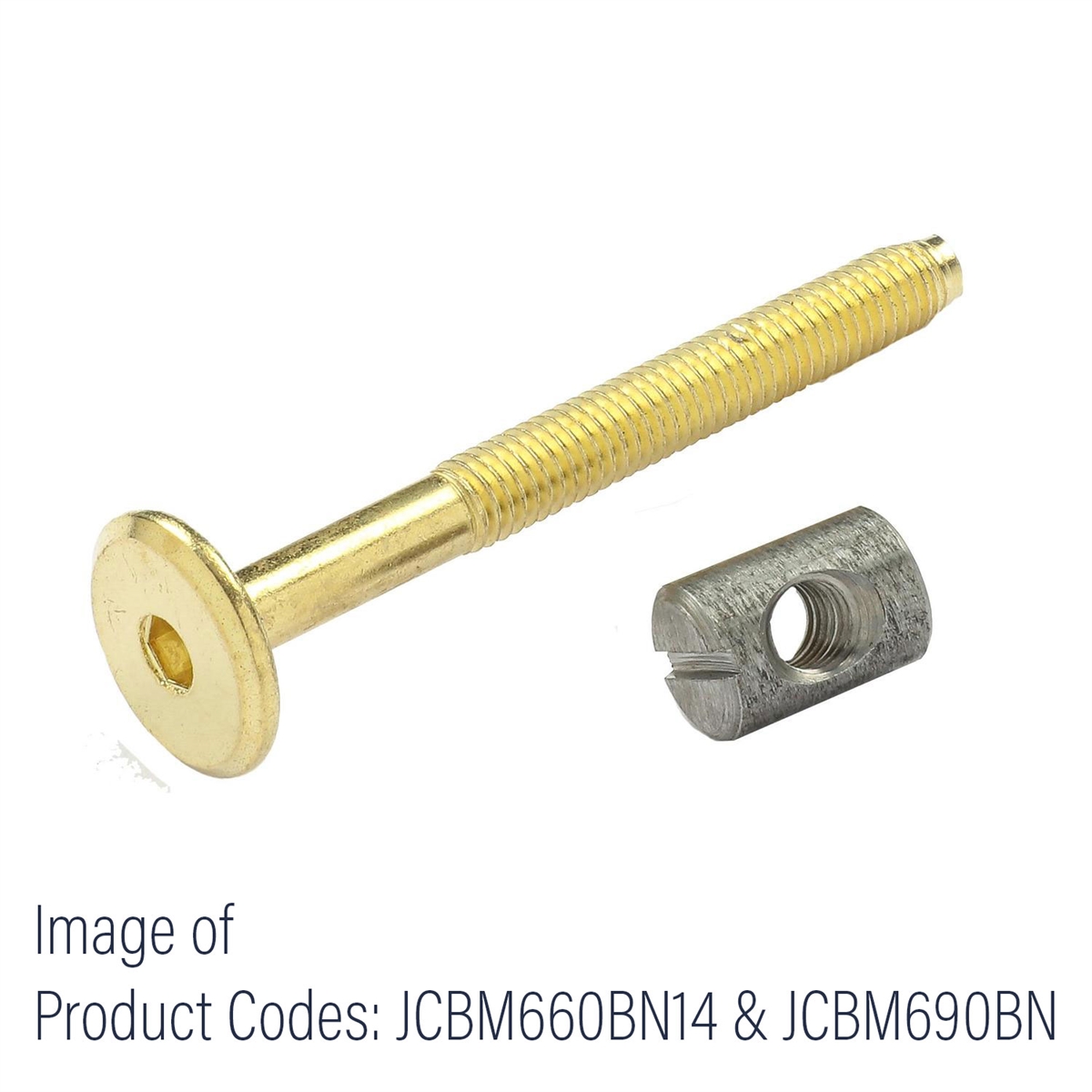

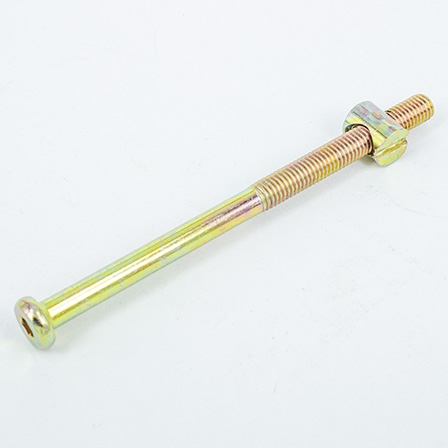

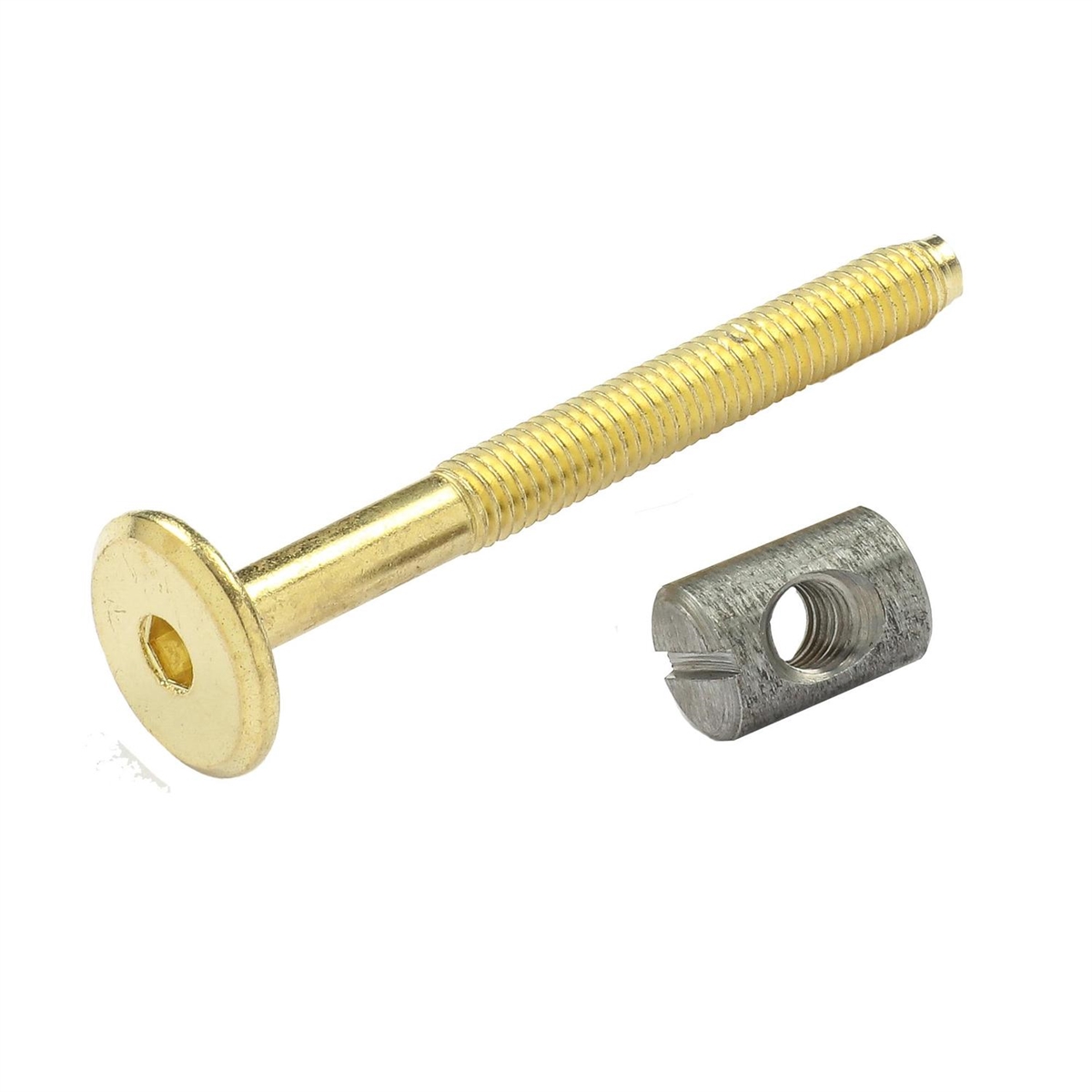

JCB Bed Frame Connector Bolt Sets are used to connect timber bed frames and bunk sets together. They connect internally with Barrel Nuts (Cross Dowels), which are positioned at 90 degrees. Each set contains 1 x JCB Connector Bolt and Barrel Nut.

Item# Item Name Retail Price Qty Add
JCBM645BN12ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 45mm - Metric M6 Thread - 12mm Nut Length
$3.74 ($3.25 exc GST)
JCBM655BN12ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 55mm - Metric M6 Thread - 12mm Nut Length
$5.61 ($4.88 exc GST)
JCBM655BN15ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 55mm - Metric M6 Thread - 15mm Nut Length
$5.64 ($4.90 exc GST)
JCBM665BN12ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 65mm - Metric M6 Thread - 12mm Nut Length
$5.64 ($4.90 exc GST)
JCBM890BMN15ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 90mm - Metric M8 Thread - 12mm Nut Length
$12.31 ($10.70 exc GST)
JCBM8100BN15ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 100mm - Metric M8 Thread - 15mm Nut Length
$12.31 ($10.70 exc GST)
JCBM6120BN10MMZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 120mm - Metric M6 Thread - 10mm Nut Length
$12.31 ($10.70 exc GST)
JCBM8120BN15ZP Bed Frame Connecting Bolt Sets | JCB Connector Bolts - 120mm - Metric M8 Thread - 15mm Nut Length
$11.83 ($10.29 exc GST)
Check the items you wish to purchase, then click


Technical Specs:
These sets include 1 x JCB 8mm Connecting Bolt and 1 only 8mm x Barrel Nut (Cross Dowel)

JCB CONNECTING BOLT
Measurement of the JCB Connecting Bolt is the length of the THREAD and SHANK (if any) up to the head but EXCLUDING THE HEAD which is extra.
  • Diameter of the HEAD is 13.0mm
  • Fastening of the HEAD is by 5mm Hex Head Allen Key
  • Material is Steel
  • Finish is Zinc Chromate
BARREL NUT (CROSS DOWEL)
  • Internal Thread is 8mm
  • Length - refer to product options and select a length that is suitable for the thickness of the bed frame timbe
  • Outside Diameter of Barrel is 11.5mm
  • Material is Steel
  • Finish is Zinc Chromate
