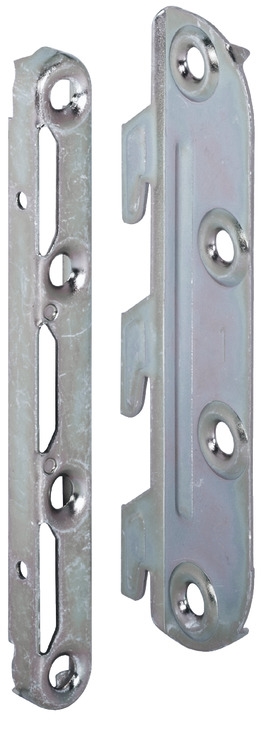

HOOK-IN PART (4 pcs)

• Parts are 'handed' Left and Right
• Length of Part 100mm

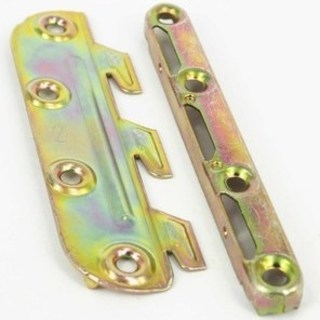

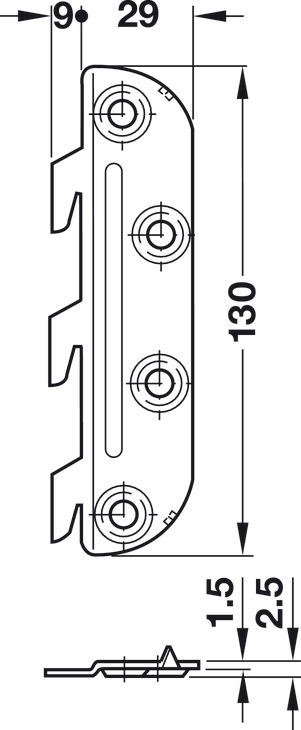

• Width of Plate Part 29mm
• Width of Hook Part 9mm
• Plate Part has 2 positioning prongs
• Hook Parts attach to Side Rails

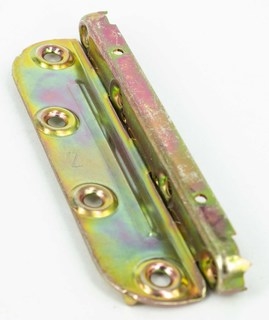

• Part Stamped 1 positioned RH at Head of Bed & LH at Tail of Bed
• Part Stamped 2 positioned LH at Head of Bed and RH at Tail of Bed

STRIKING PLATE (4 pcs)

• All Striking Plates are identical
• Striking Plates attach to Head and Tail Boards

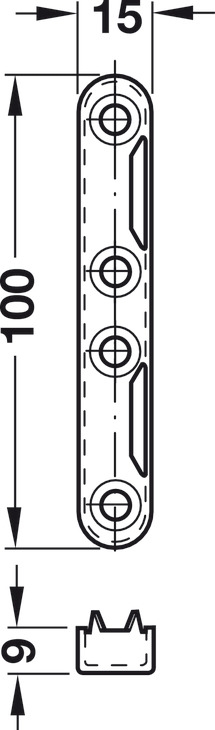

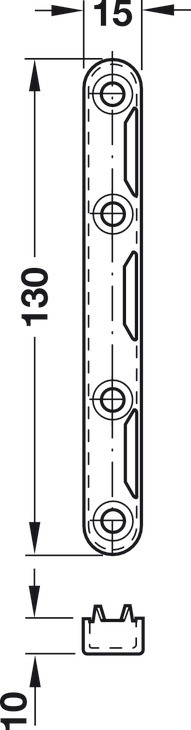

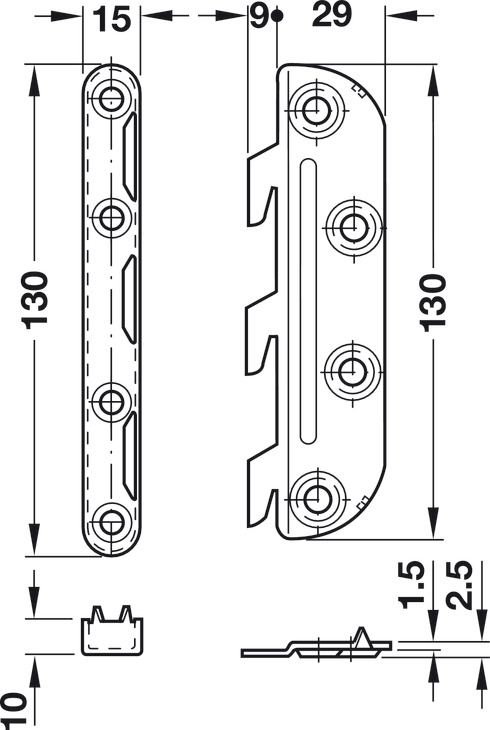

• Length of Striking Plate is 130mm
• Width of Striking Plate is 15mm
• Depth of Striking Plate is 10mm

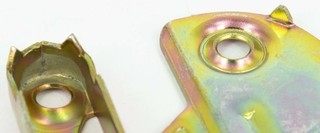

• Each Striking Plate has 4 positioning prongs
• Striking Plate has 3 Slot Positions for Hooks
• Postion Striking Plates so that Slots are nearest the outside of the bed frame

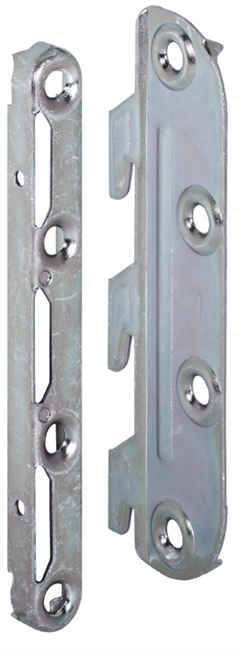

• The 130mm Hook-in Style Connectors are the ideal solution for connecting bed frames with side rails over 100mm.

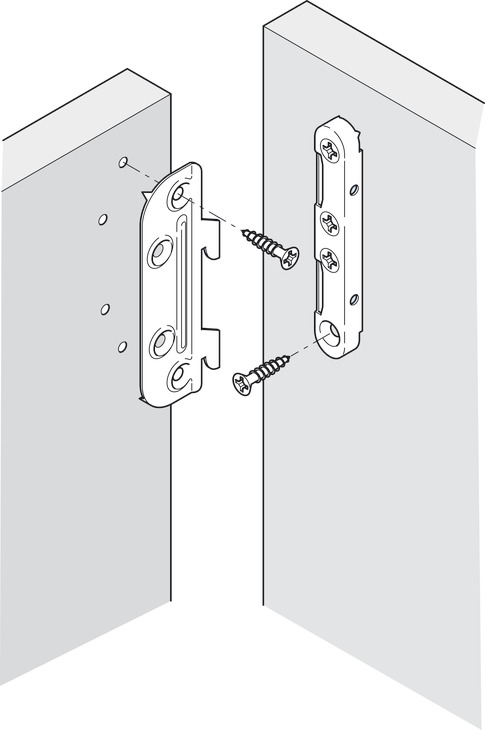

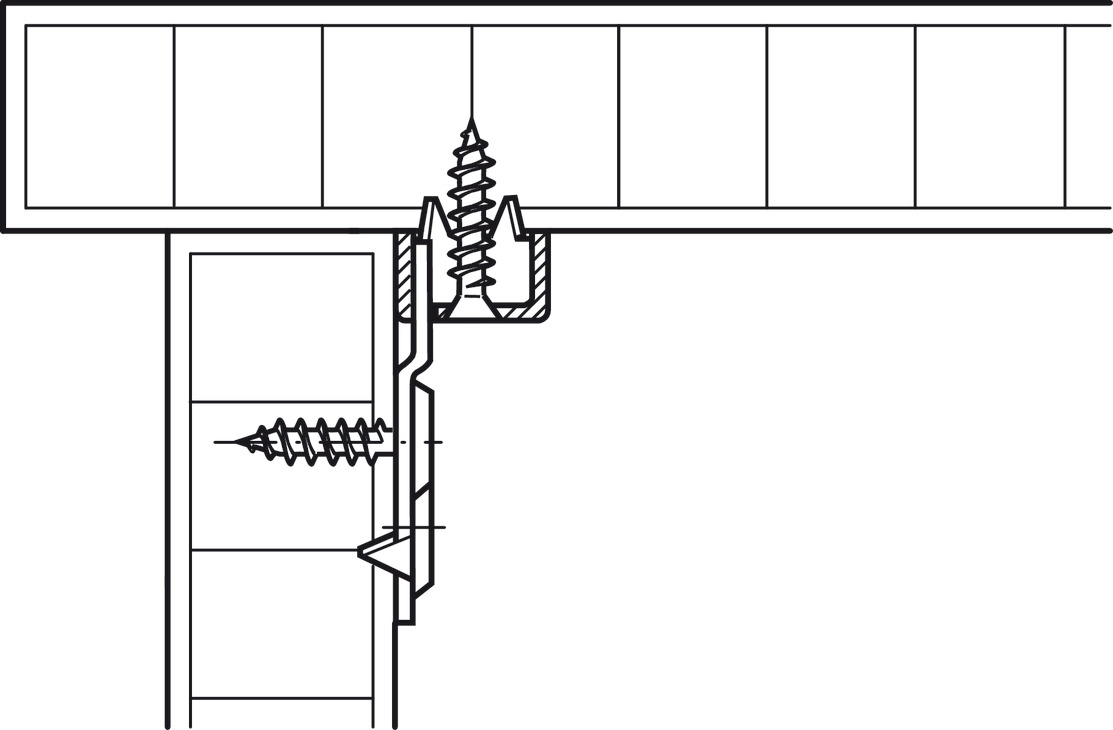

• There are no bolts or nuts to tighten, and the Hook-in parts simply slot into place in the Striking Plates.
• Gravity and use of the bed will tighten the grip so that they won't come loose. However for future storage or transport reasons the 130mm Connectors can be knocked apart quite easily.
• The 4 Striking Plates are not 'handed' and can go in any corner and are usually fitted to the head rail and tail rail.
• The 4 Hook-in parts are 'handed' in that there is a Left Hand pair and a Right Hand pair.  These are usually fitted to the side rails.
• See the Specifications tab for more detailed information.

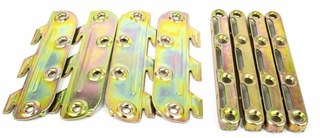

• Lay out the 8 components in the desired position before commencing any assembly.
• A hardware mechant will advise on the screw gauge, screw head size & type and length as this will vary depending on the construction of your bed frame.
• 32 screws are required in total for a set of 8 pieces.
