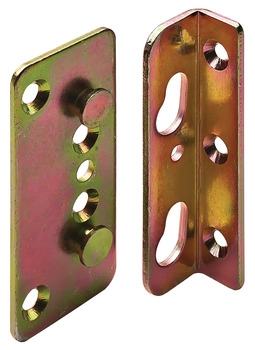

BED CONNECTOR SET | HANG - UP | 3 SCREW HOLES | SET OF 8 PIECES
Bed Connector Set - Hang-Up - 3 Screw Holes
Alternative Views:
TRADE PRICES?
Login
or
Contact Us
Retail Price:
$
36.46 (31.70 exc GST)
Quantity in Stock:14
Availability:
Usually Ships in 2 to 3 Business Days
Product Code:
KDBFT0
Qty:
Description
Technical Specs
How To Instructions
Bed Base Frame Connector that securely joins timber and MDF frames. Can be used to connect any wooden frame set at a 90 degree angle. An elongated shaped slot fits over lugs sitting proud of the second plate to securely lock both corners into place.
Overall Height: 90mm
Screw Holes Fixing Plate: 4
Screw Holes Angle Bracket: 3
Screw Hole Diameter: 5mm
Screw Head Countersink Hole Diameter: 9mm
Keyhole Angle Fitting: 90mm x 21mm x 16mm x 3mm
Mounting Plate: 85mm 35mm 2.25mm
Material: Steel
Finish: Yellow Chromatised
Pieces Per set: 8
The 90mm Connectors are the preferred method of connecting bed frames with side rails greater than 100mm. There are no bolts or nuts to tighten, and the Joiners simply lock into place. The mushroom-shaped dome heads drop into the round hole, and the shanks slide down the curved slot to lock with the dome heads protruding.
Gravity and use of the bed will tighten the grip so they won't come loose. However, the 90mm Connectors can be easily knocked apart for future storage or transport.
The 4 flat Fixing Plates (with dome heads) are not 'handed' and can go in any corner and are usually fitted to the headrail and tail rail.
The 4 Angle Brackets are 'handed' in that there is a Left Hand pair and a Right Hand pair. These are usually fitted to the side rails. The large hole always goes to the top.
Lay out the 8 components in the desired position before commencing any assembly.
A hardware mechant will advise on the screw gauge, screw head size & type and length as this will vary depending on the construction of your bed frame. 28 screws are required in total for a set of 8 brackets.
A guide to the hole sizes and dimensions is shown under the Specifcations tab.
